New PartMaster V15 - Lathe Express Module
The cost effective solution to keeping your machine tools cutting metal 2D CAD, 2D & 2.5D Milling / Drilling, Post processing
2D CAD for creating part shapes or create complete drawings
Import DXF files and just select the features you need to machine

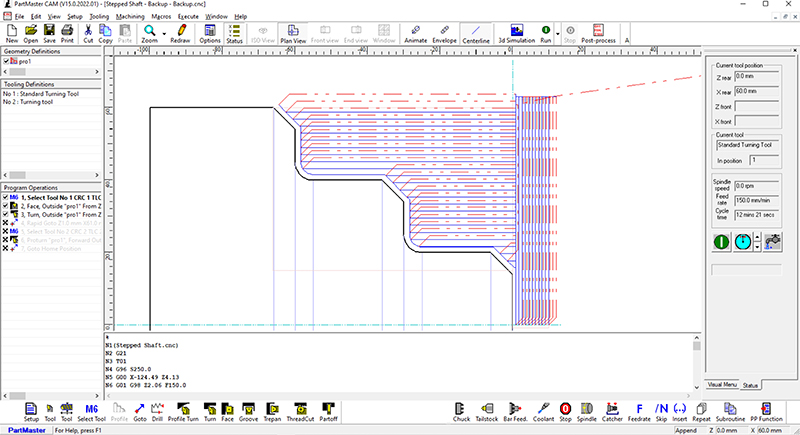

Face and Turn Roughing
Internal Boring
Roughing and Finishing with a Button tool
Grooving cycles with Chamfer & Fillet settings

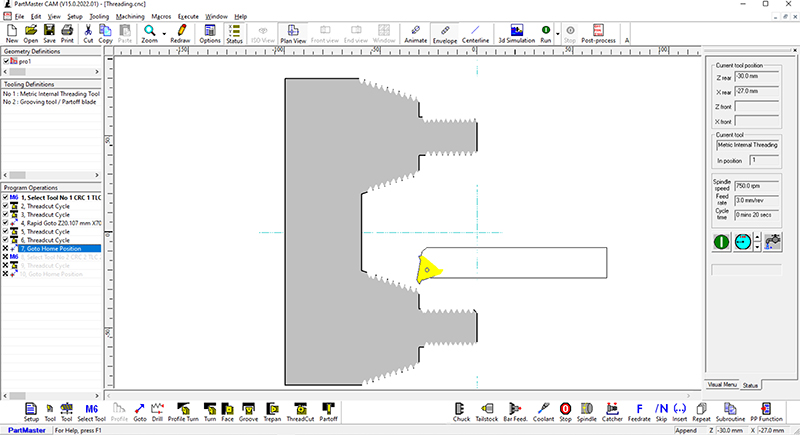

Screw cutting with Internal & External, Parallel & Tapered threads
- 2D CAD module included
- Import DXF files
- Face Roughing
- Turn Roughing
- Profile Boring
- Internal Boring
- External Finishing
- Grooving
- Screw Cutting
- Drilling
- Parting off
- Automatic Gouge free machining
- Constant Surface Speed Control
Cycles for Facing, Turning, Grooving, Threading & Drilling
Tool Tip Radius compensation (G41/G42) - Supports 2 axis lathes with either a Rear or Front turret or tool post
- Tool types: Turn, Face, Groove, Trepan (Face Groove), Boring bar, Thread, Drill, Ream, Bore, and Tap
- Automatic area clearance between billet and finished profile
- Separate finishing allowance in Z and X
- Part surface programming
Cycle time estimates
Display of tool tip, tool tip envelope or full tool animation - Standard Post Processors
Using 'Rear Approach' tooling allows components to be completed in a single hit.
When machining complex Profiles, the tool tip geometry is known and produces 'Gouge free' machining.
Clear and concise graphics of the Profile, Stock material, Chuck and Tailstock allow for easy program verification.

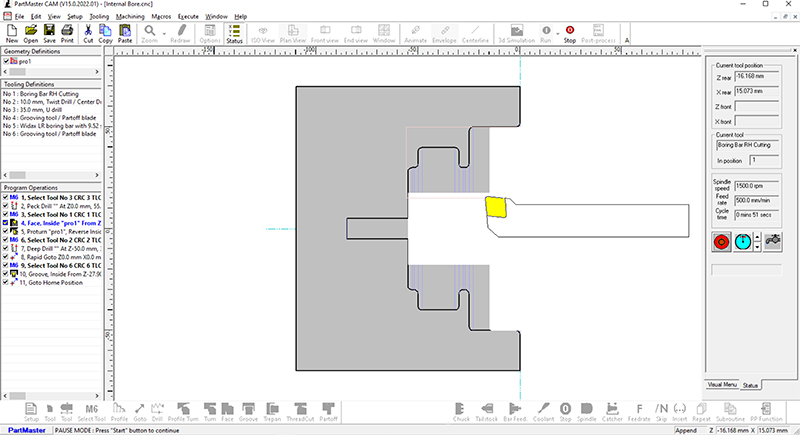

Using Boring tools with front or rear approach enables complex internal Profiles to be machined accurately.
Machining on the front face of a component.
Using a Button Tool to Rough and Finish the component.
